8x5 Heavy-Duty Galvanised Plant Trailer – 3,500kg Tandem Axle Excavator

8x5 Heavy-Duty Galvanised Plant Trailer – 3,500kg Tandem Axle Excavator & Machinery Trailer.

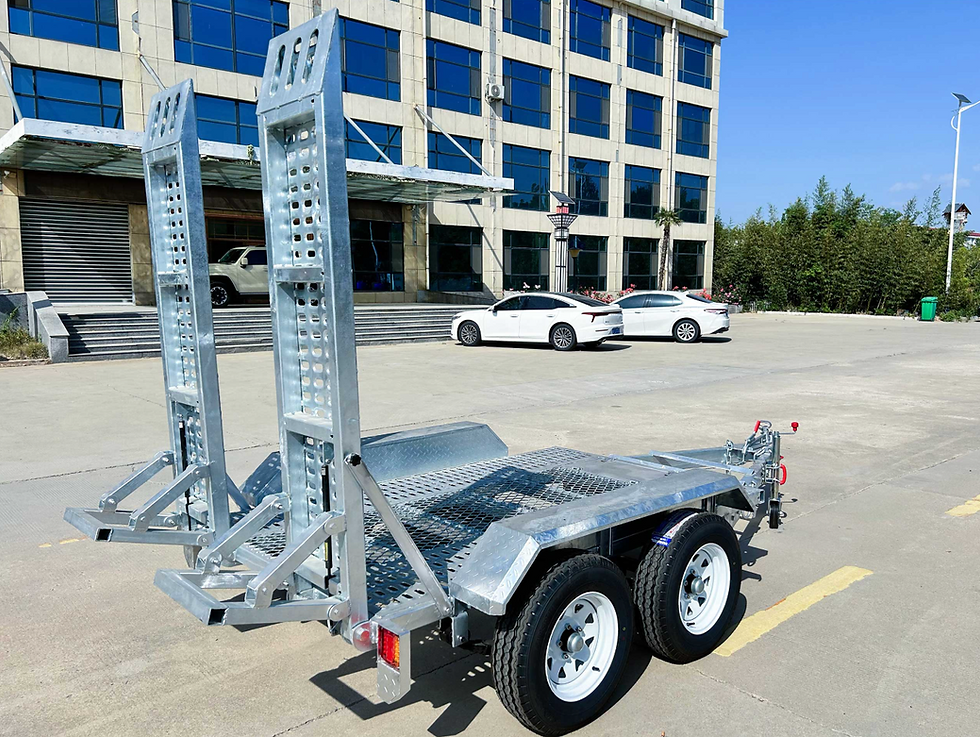

The 8ft x 5ft Heavy-Duty Galvanised Plant Trailer (3,500kg) is built for transporting compact excavators, skid steers, mini-loaders, and other heavy construction machinery. Manufactured from robust steel components, the chassis and frame are hot-dip galvanised for long-term corrosion resistance and durability in harsh jobsite conditions. This tandem-axle trailer runs on dual 50mm solid axles rated at 1,500kg each, supported by a heavy-duty 7- or 9-leaf spring suspension system for dependable load handling. For towing strength and stability, it features an 1800mm heavy-duty drawbar (traction rod) measuring 100mm x 50mm x 5mm. Finished with ADR-approved LED lighting for road compliance, it delivers a strong, practical platform with an excellent tare-to-payload balance.

Technical Specifications & Dimensions

• Application Use: Plant Trailer / Excavator Hauler / Heavy Machinery Transport

• Surface Treatment: Hot-Dip Galvanized

• Color: Silver

• Aggregate Trailer Mass (ATM): 3,000 kg – 3,500 kg (6,613.87 lbs – 7,716.18 lbs)

• Maximum Payload Capacity: Greater than 2,500 kg (Net capacity varies by suspension selection)

• Tare Weight: 800 kg – 850 kg (1,763.7 lbs – 1,873.9 lbs)

• Suspension Type: 7-Leaf or 9-Leaf Spring Configuration

• Axle Specification: Dual 50mm Solid Axles (1,500 kg rating per axle)

• Lighting System: LED ADR Light Assembly

• Traction Rod (Drawbar): 1,800 mm Length x 100 mm Width x 5 mm Thickness

• Overall Size (Exterior): 2,480 mm x 1,560 mm

• Internal Box Dimensions: 2,440 mm Length x 1,530 mm Width (8 ft x 5 ft)
